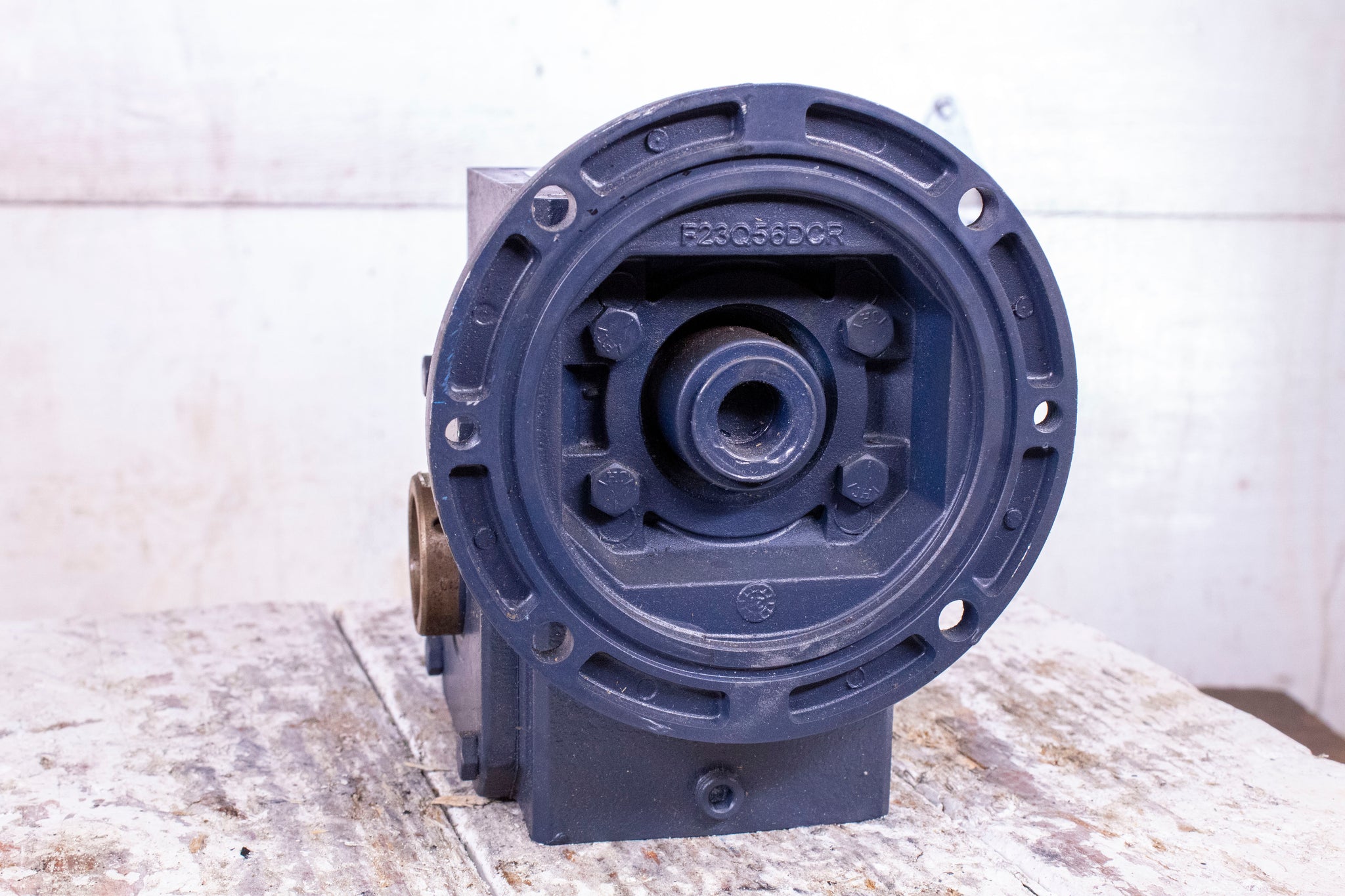

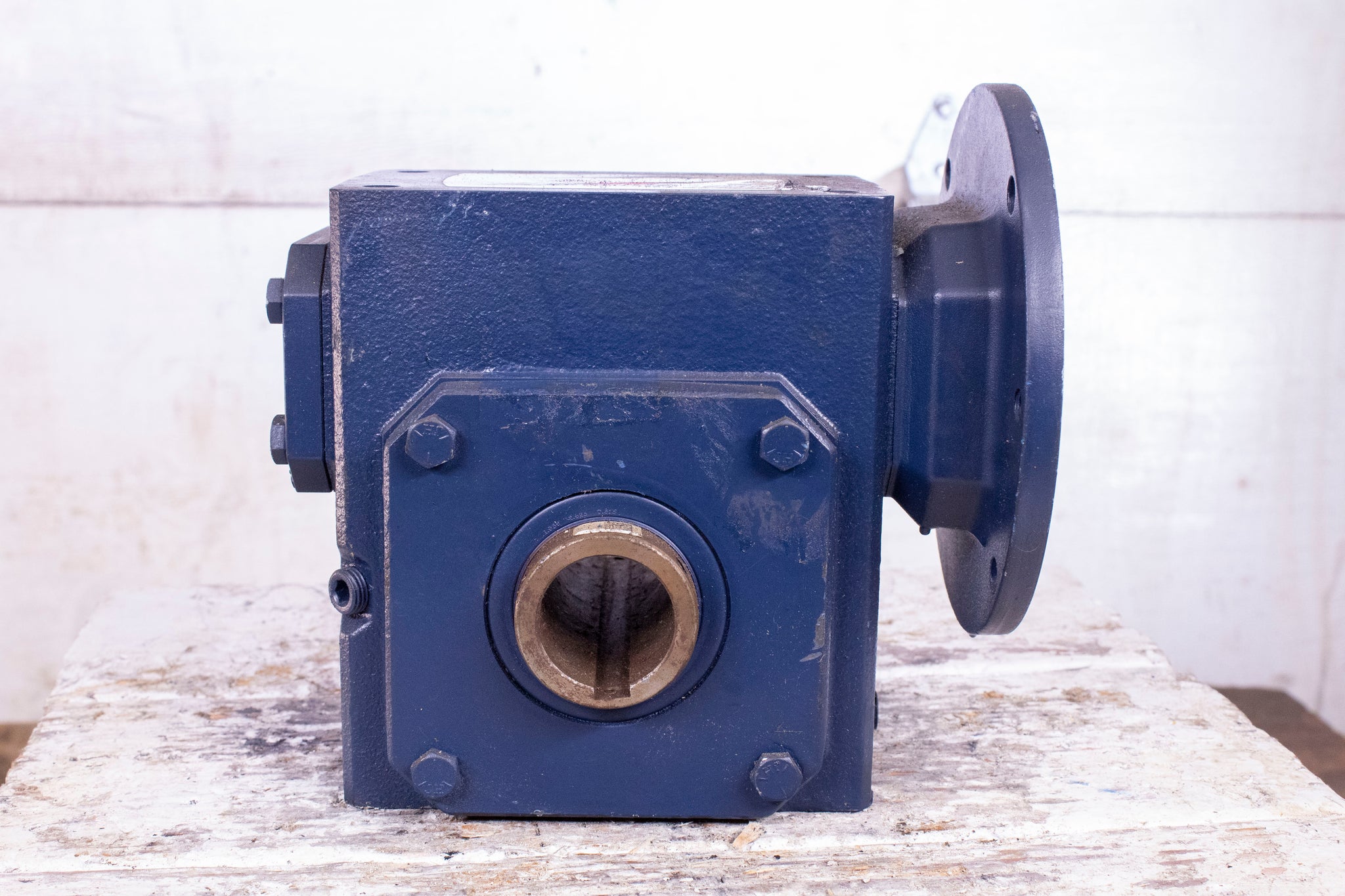

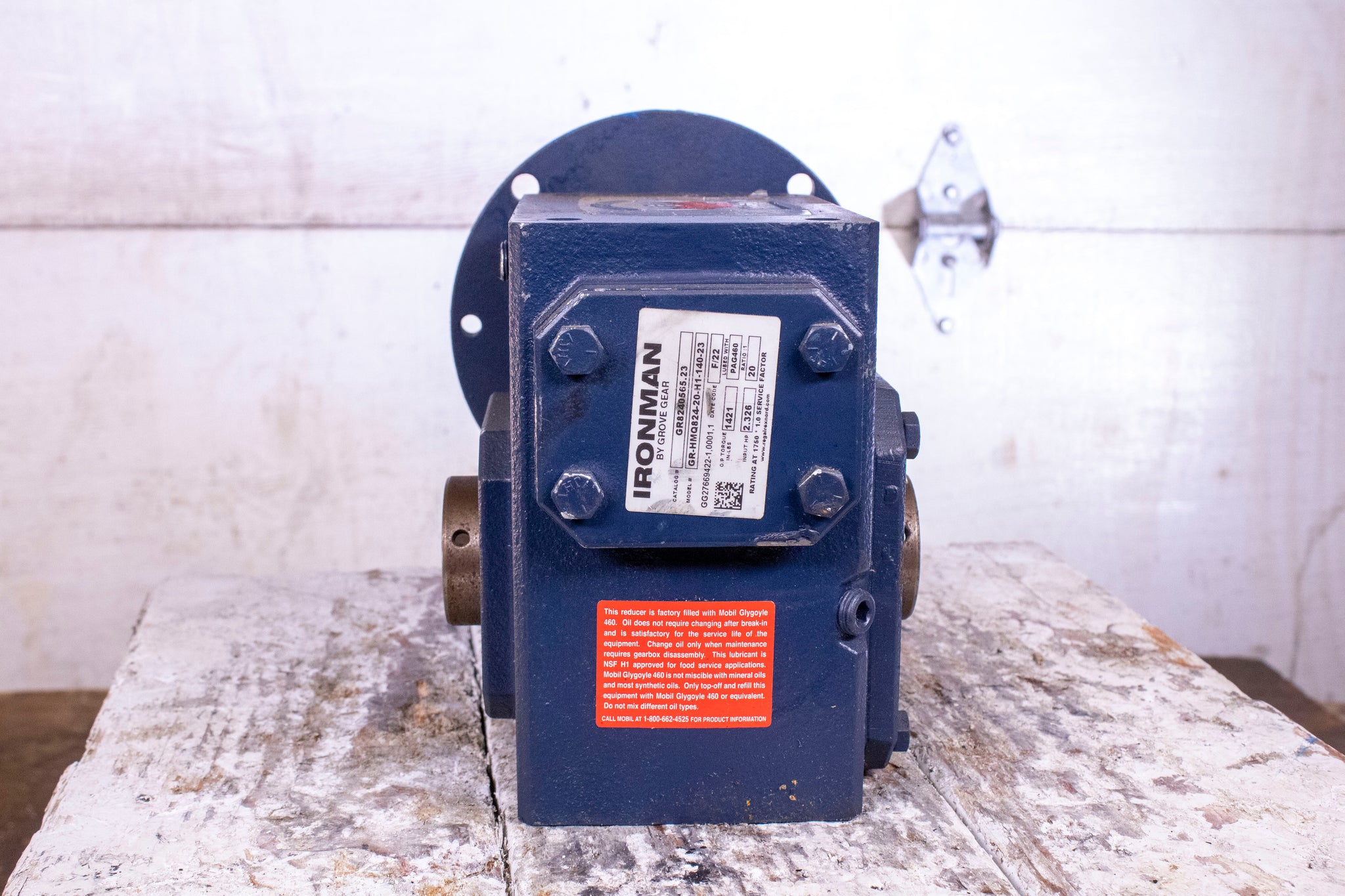

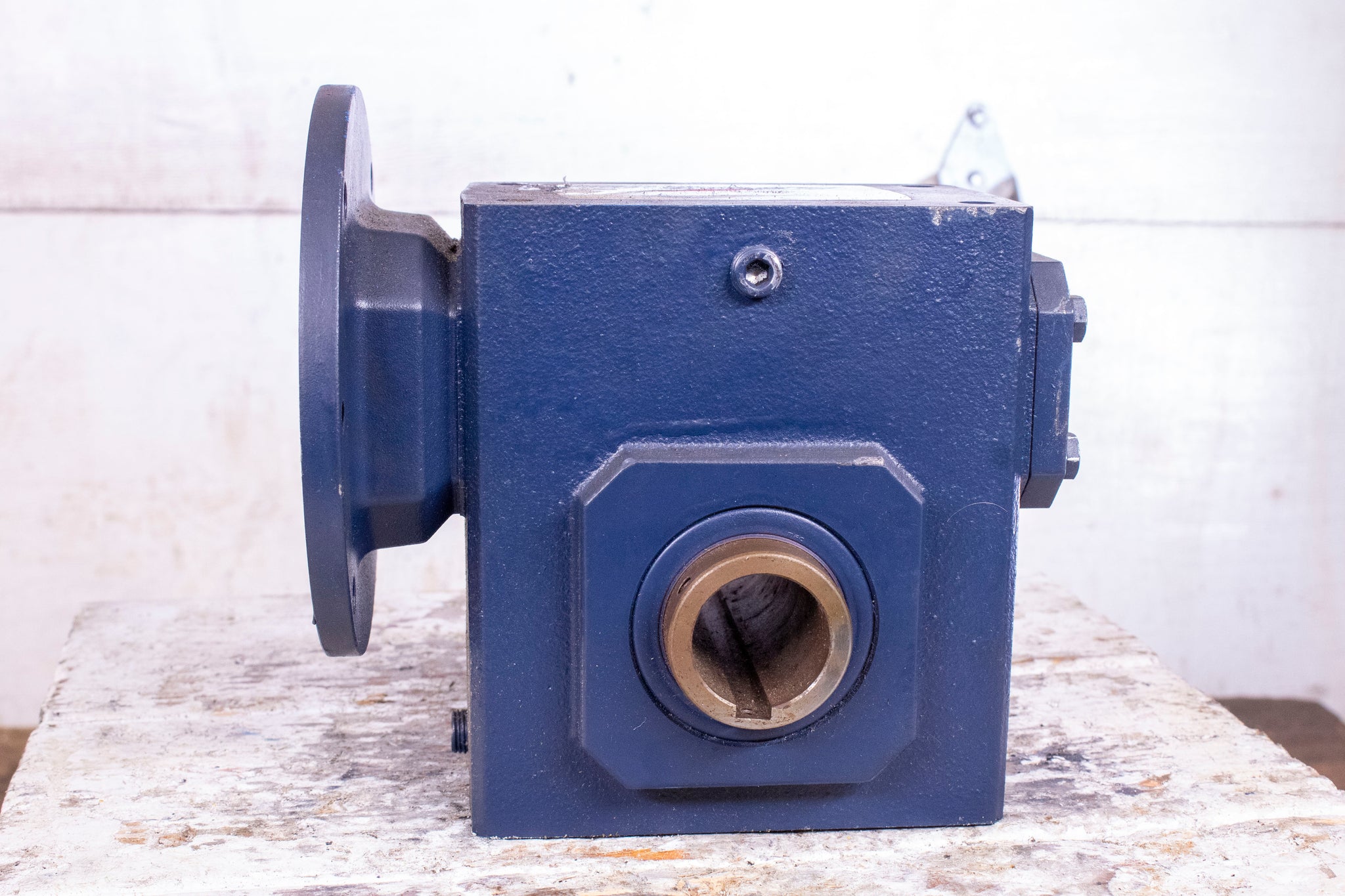

new old stock
Input Size :7/8 in Dia
Material: Cast Iron
Mounting Type : Shaft
Output Size : 1.438 in Dia

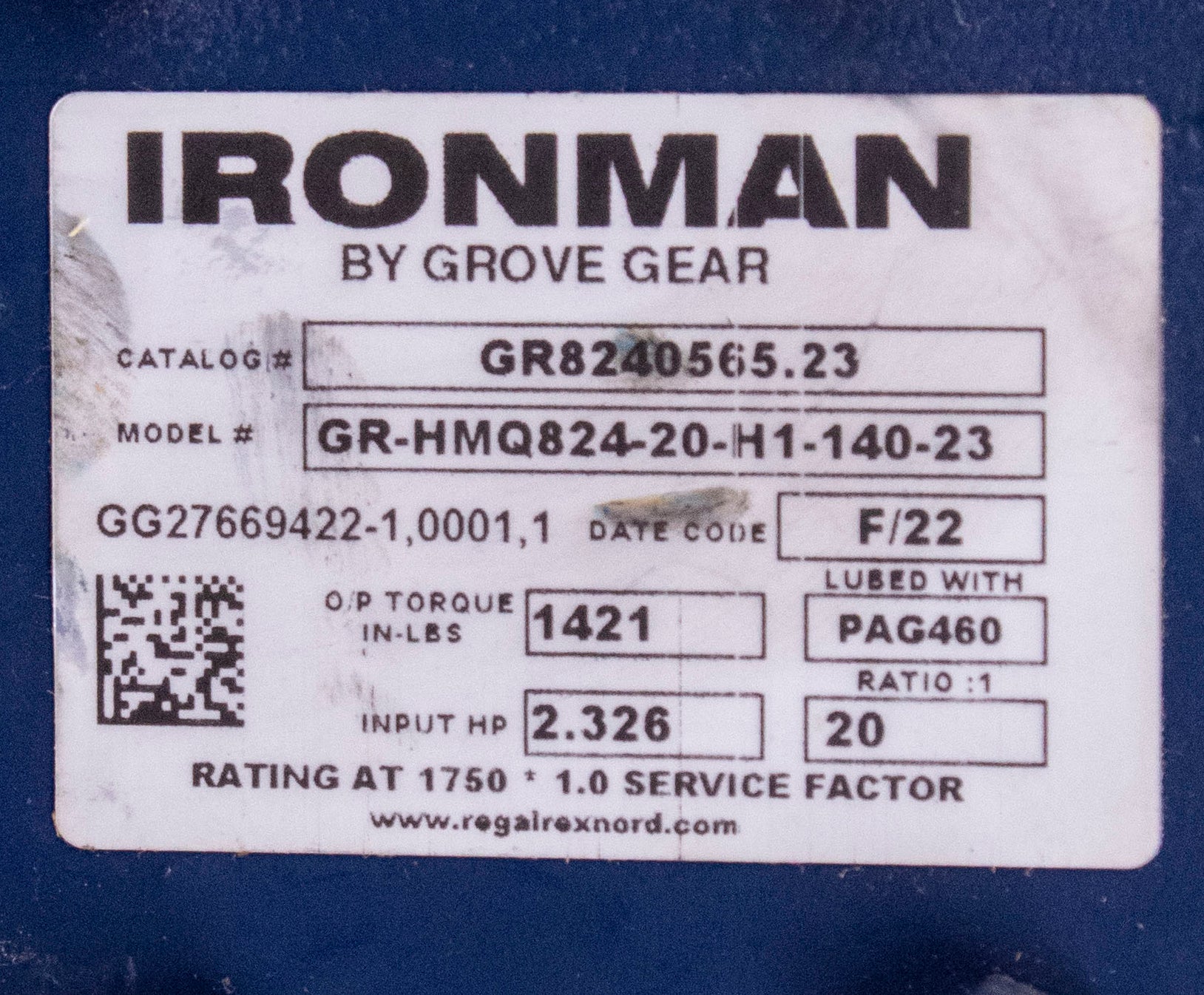

Series: GR Series
Input Type : C-Face Quill
Output Type : Hollow Bore
Gear Ratio : 20:1
Type : Right Angle Single Reduction
Dimensions : 6 in W
Keyway Size : 3/16 x 3/32 in Input, 3/8 x 3 in Output
Input Maximum Speed : 1750 rpm
Lubrication Type : PAG Synthetic Oil
Centre Distance : 2.38 in
Horsepower : 2.326 hp Input, 1.972 hp Output, 2 hp Motor
Output Maximum Speed : 87.5 rpm
Torque Rating : 1421 in-lb Output
located in F2
