remanufactured by Danfoss
Key Specifications (from Danfoss model code breakdown)
- Series: 90 (high-power closed-circuit axial piston)
- Rotation: R = Clockwise (CW)
- Displacement: 075 = 75 cc/rev (4.59 in³/rev) — variable
- Control: MA = Standard Manual Displacement Control (MDC)
- End Cap Ports: 80 = Twin ports
- Charge Pump: D = 17 cc/rev
- Auxiliary Mounting Pad: BC = SAE-B with 13 teeth coupling
- Charge Pressure Setting: 24 bar (~348 psi)

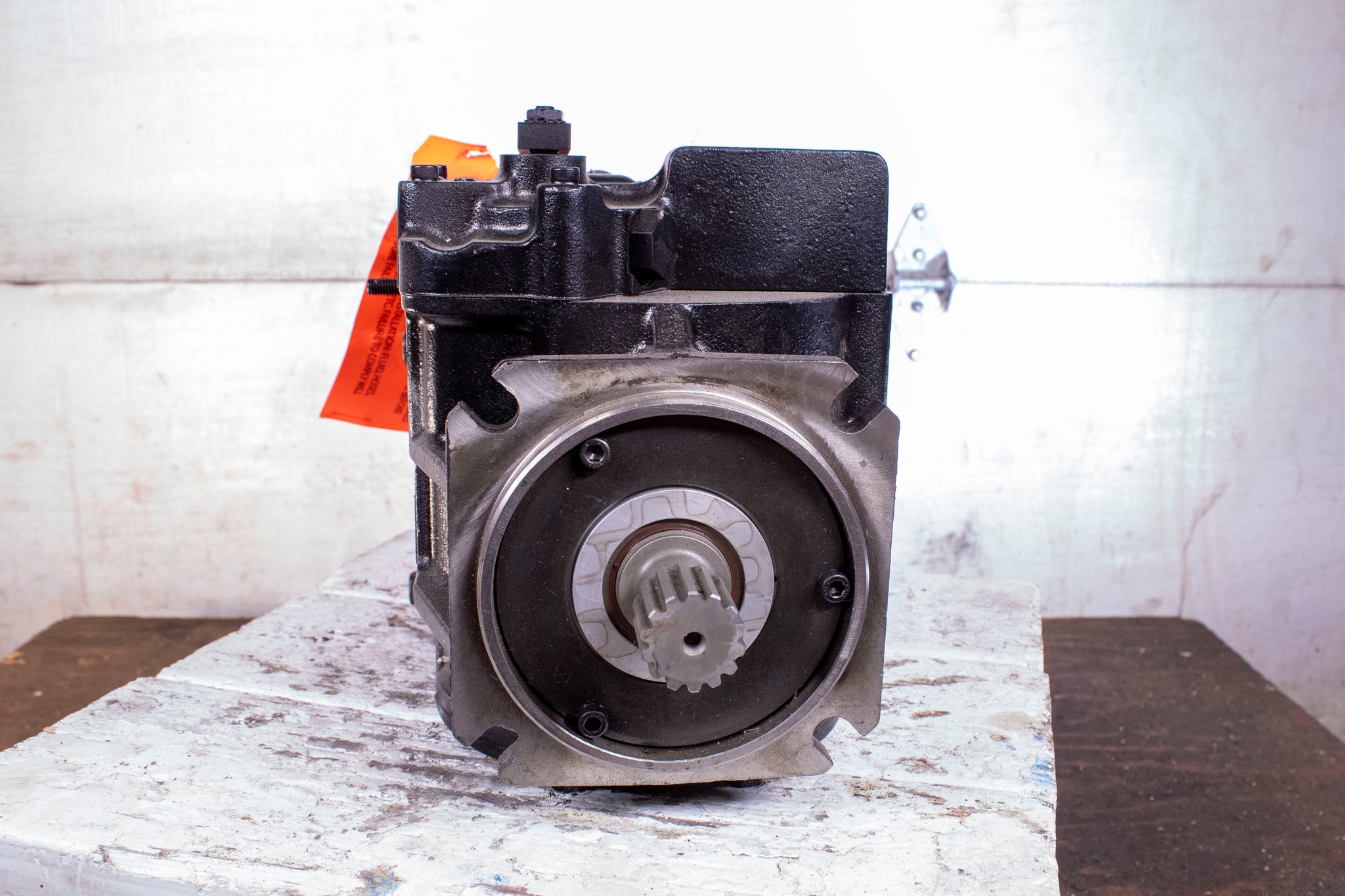

- Shaft: S1 = Splined shaft, 14 teeth, 12/24 pitch
- Filtration: S = Suction
- High Pressure Regulation: Port A & B fast response pressure limiter (PL), up to 450 bar capability
- High Pressure Settings: Port A = 320 bar (~4640 psi); Port B = 320 bar (~4640 psi)
- Special Features: GBA = CP15 +0.5 valve plate (with other hardware options)
located in C1
